LOCATION
Norway
Norway
PROJECT OVERVIEW
The Challenges
Structural analysis was performed for a quay crane modification project involving an increase in the crane outreach.
FEM analysis was used to check wheel forces on the quay rail, structural static strength, fatigue and buckling in accordance with FEM 1.001.
STRUCTURAL VERIFICATION
FEM Analysis of the Modified Quay Crane
FEM analysis was performed to assess the quay crane structure after the planned increase in outreach. The verification covered wheel forces on the quay rail, static strength, fatigue and buckling in accordance with FEM 1.001.
>
Wheel Forces on Quay Rail

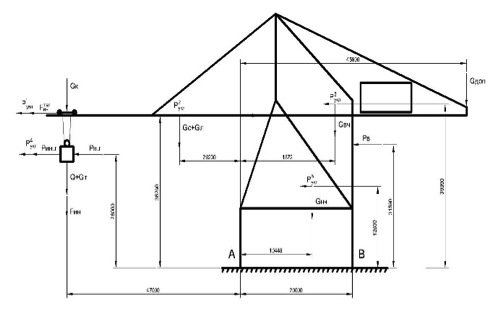

Verification of wheel forces on the quay rail for the modified crane configuration.
Verification of wheel forces on the quay rail for the modified crane configuration.
>
Static Strength

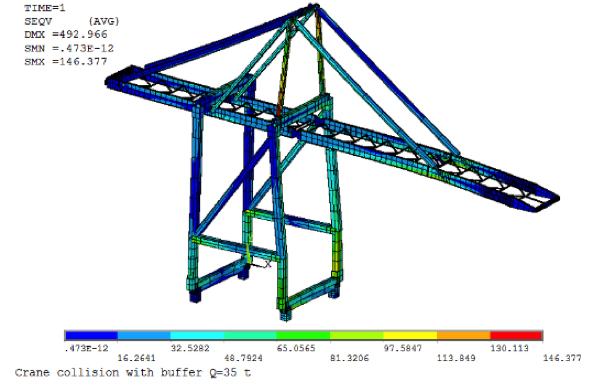

Static strength verification of the quay crane structure.
Static strength verification of the quay crane structure.
>
Fatigue
Fatigue analysis of the crane structure.
Fatigue analysis of the crane structure.
>
Buckling
Buckling verification of the crane structure in accordance with FEM 1.001.
Buckling verification of the crane structure in accordance with FEM 1.001.
PROJECT OUTCOME
Design Verification for Increased Outreach
The FEM analysis provided verification of wheel forces on the quay rail, static strength, fatigue and buckling for the quay crane modification with increased outreach in accordance with FEM 1.001.
